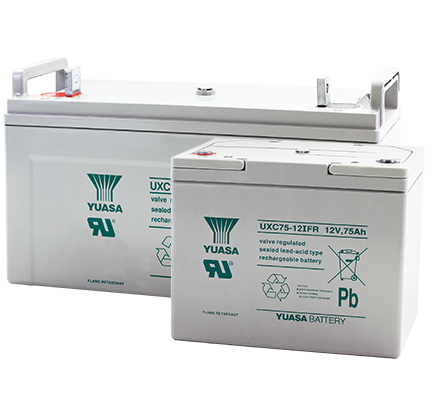

UXC & FXC(Cyclic and Energy Storage) type battery
Superior discharging performance, long life and safety.
New generation designed for sustainable energy system storage.
High-tech formula makes superior cyclic discharging performance.
Meets IATA A67 and IMDG 238 standards.
Feature of product
Easy maintenance
When battery is charging, hydrogen would be absorbed and reversed to eletolyte by plates. So it doesn't need to refill water and balanced charging, which makes maintenance easy.
Keep electrolyte high
Eletrolyte is absorbed in glass mat and still. Battery can be used or positioned under 90 degress angle orientation.
Extremely safe
When excessive gas production by inappropriate charging occurs, safety valves will automatically emit the gas to prevent battery cracked.
Low self-discharge
Special lead-calcium alloy plates makes lower self-discharge and longer preservation.
Long life, high economy
Plates are made of anti-corrosion lead-calcium alloy, which has longer float charging life. Separator(glass mat) can trap eletrolyte and active material
on positive plates, prevent active material drop at the same time. More over, greater deep charge cycle lifespan makes battery worth to turst and
high-economic.
Low resistance
Higher current, better performance.
Fine charge recovery after deep discharge
Long-term discharge is not good for battery on device. If battery status going worse, give it full-recharge, which will recover fast and won't cause lifespan loss.
Product Usage
Regular charge
- Energy storage system
- Photovoltaic system
- Solar outdoor lighting system
Specifications
| Type | Voltage(V) | Capacity(AH) | Capacity(W/Cell) | Dimensions(mm) | Weight Approx.(KG) | Flame class |
Life Expectancy (25°C) |
PDF Download |
|||||||||
| 5HR | 8HR | 10HR | 12HR | 20HR | 5min rate | 10min rate | 15min rate | (L) | (W) | (H) | Overall(H) | ||||||
| FXC50-12IFR | 12 | - | - | - | - | 50 | - | - | - | 278 | 103 | 197 | 197 | 14.8 | UL94V0 | 50% DOD 600 Cycle |
 |
| FXC100-12IFR | 12 | - | 100 | - | - | - | - | - | - | 508 | 106 | 236 | 236 | 31.5 | UL94V0 | 50% DOD 600 Cycle |
|
| FXC210-12IFR | 12 | - | - | - | - | 210 | - | - | - | 519 | 209 | 243 | 243 | 65 | UL94V0 | 50% DOD 1500 Cycle |
|
| FXC250-12IFR | 12 | - | - | - | - | 250 | - | - | - | 520 | 243 | 230 | 230 | 75 | UL94V0 | 50% DOD 1500 Cycle |
|
| UXC90-12I FR | 12 | - | - | - | - | 90 | - | - | - | 305 | 173 | 220 | 223 | 31.2 | UL94V0 | 50% DOD 600 Cycle |
|
| UXC105-12I FR | 12 | - | - | - | - | 105 | - | - | - | 305 | 173 | 220 | 223.5 | 32 | UL94V0 | 50% DOD 600 Cycle |
|
Expected float charge is 25℃.
Expected lifespan would be reduced by higher temperature.
